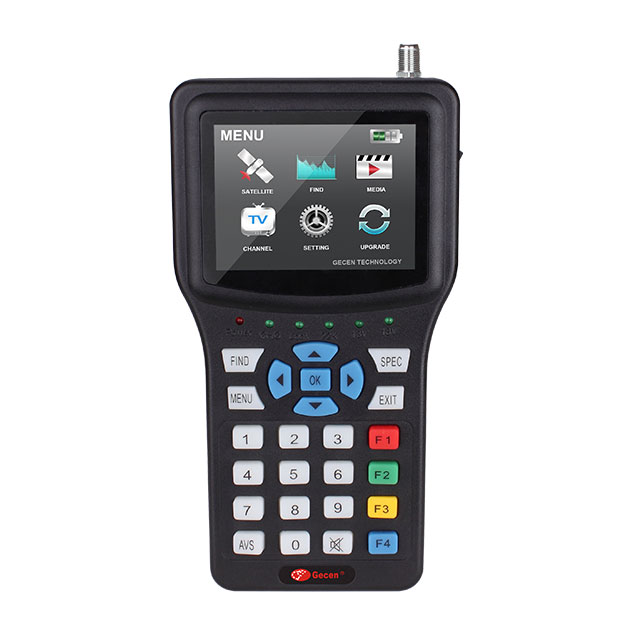

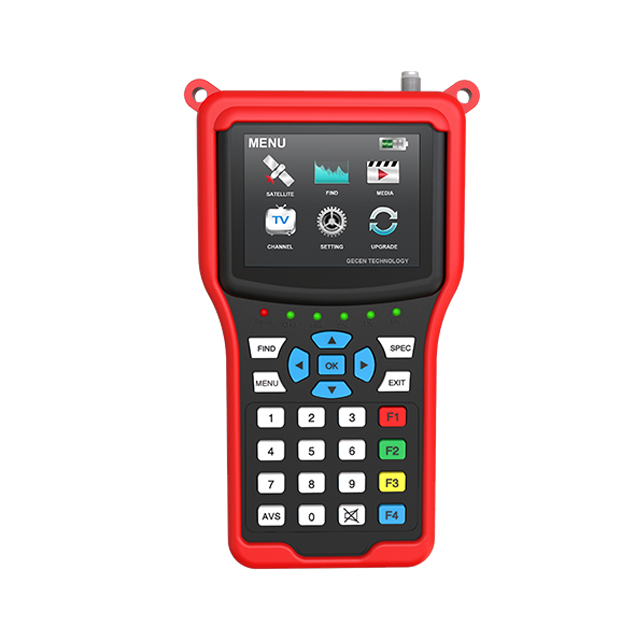

SF-3700GC
Digital Satellite FInder
3.5''TFT LCD Screen
Support DVB-S/S2
Support CCTV camera testing
3.5''TFT LCD Screen
Support DVB-S/S2
Support CCTV camera testing
-
Features:
*3.5''TFT LCD Screen
*Support DVB-S/S2
*Support CCTV camera testing
*Support (5MP Optional)
*Support Spectrum Analyzer
*Multi-lingual OSD and friendly UIConnection and Size Picture:
Specifications:
System Resources Main Processor 600M Hz based CPU Flash Memory 64M Bits DDR2 SDRAM 512M Bits Tuner/Front-end Tuner Type DVB-S/DVB-S2 Input Connector F-type Frequency Range 950MHz~2150MHz Signal Level -65~-25dBm Impedance 75Ω LNB Power & Polarization Vertical:+13V Horizontal:+18V Current:Max.500mA Overload Protection DiSEqC Control Version 1.0/1.1/1.2/1.3,USALS Available 22KHz Tone Frequency:22±1KHz Demodulation QPSK,8PSK,16APSK,32APSK Symbol Rate 1~60Msps Power Supply Input Voltage Adapter Free Voltage (100~240V AC 50/60Hz) Power Consumption 10W MAX Power charger output 14V DC 2A Battery 12.6V/2200mAh Battery charging time 6H Battery standard discharging time 3-4H CCTV input CVBS(SF-3700G) CVBS/ TVI /CVI /AHD(SF-3700GC) Video Output RCA(CVBS, L), HD TV Interface Power Output DC12V Audio output Built-in Loudspeaker USB 1*USB 2.0 slot Compatible for Host Transport Stream MPEG-2/4,H.264 Physical Specification LCD Display 3.5 inch Size[W*H*D] 180 x100x 40(mm) Operating Temperature 0℃ ~ + 45℃ Storage Temperature -10℃ ~ + 70℃
